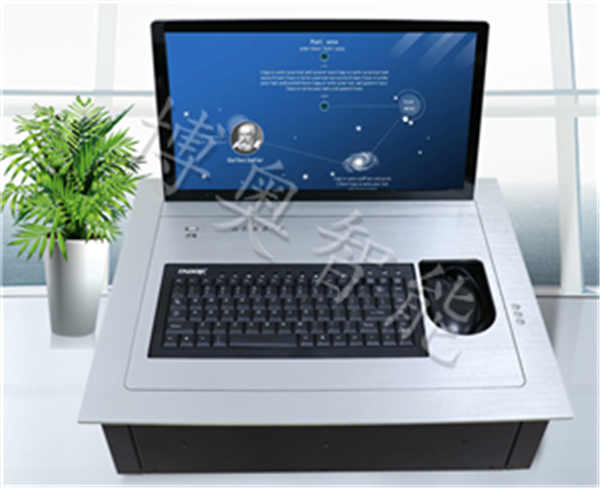

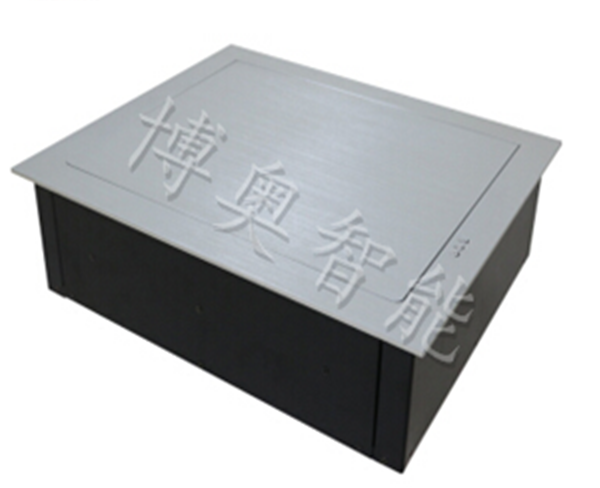

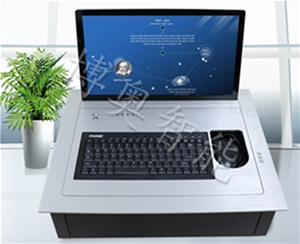

LCD flipper-aluminum alloy box type (mouse and keyboard included)
Details
：
1. The panel adopts the whole mould into forming technology, and then it is processed by fine carving and fine processing. Make the product performance stable without losing the machine's atmosphere and fine carving beauty.
2. Oxidation and coloring treatment of the panel surface: first use multi-stage sanding to ensure smoothness, then pull out the filaments, and then perform high-temperature oxidation. Make the panel evenly black and show gloss.
3. The control board adopts a double-sided wiring structure, and the strong and weak current are arranged separately, and the red hole test is passed. Ensure that the small heart of the machine is not disturbed.
4. The motherboard chip adopts the international famous brand-Atmega, imported chips. To ensure the stable and efficient operation of the machine, the built-in waterproof template protects the machine from damage and long-term use.
5. The positioning adopts the micro switch imported from Taiwan, the motor is the famous domestic brand "Zhengke" motor, the motor has passed the CCC national compulsory certification, the motor is 18W DC, and the speed: 5 rpm.
6. Transmission-adopts the latest low-noise connecting rod transmission in the industry.
7. The panel control button adopts the metal luminous button with super hand feeling and equal emphasis on vision.
8. External high-speed 3.0USB, external computer host switch light button.
9. The LCD screen adopts IPS high-definition screen, full angle, 1920*1080 high-definition resolution. The viewing angle is: 45/45/15/35 (left/right/up/down), and the contrast ratio is 600:1 (typ)
10. Ultra-thin LCD screen with commonly used VGA and HDMI interfaces, the display frame is made of aluminum alloy CNC one-time mold molding, ultra-thin arc design, the display and the lifter have no screw side holes, no exposed edge wiring, and comes with The start switch of the computer host is more convenient for people to operate, and the wiring method is connected from the bottom to the top, which is convenient for engineering wiring.
11. Equipped with Lenovo original keyboard and Shuangfeiyan mouse.
12. The flipper can be remotely controlled (remote control: 433MHZ superheterodyne module is used to receive wireless control signals, 360 degrees without dead angle arbitrary control), central control control: RS232, RS485 communication protocol to achieve remote control (receiving through RS232 or rs485 Control or computer control signal to realize all lifting together and individual lifting control for each unit. Manual control: You can press the metal key switch on the lifter panel by hand to realize the control of lifting, lowering and stopping of each unit. Realize to start the computer switch directly on the desktop.
13. Anti-pinch function design, the machine adopts pressure anti-pinch function (to avoid the risk of accidentally pinching people during use), stable function and safer
14. Size: 15.6 inch / 17.3 inch / 18.5 inch / 21.5 inch / 23.6 inch Color: silver / black
